ILX533KB - 2700 pixel X 3 line CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

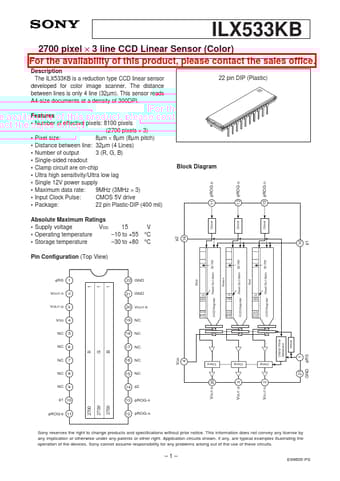

ILX533KB Datasheet Preview — Preview of ILX533KB PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX533KB
Manufacturer	Sony Corporation
File Size	125.64 KB
Description	2700 pixel X 3 line CCD Linear Sensor
Datasheet	ILX533KB_SonyCorporation.pdf

ILX533KB Product details

Description

The ILX533KB is a reduction type CCD linear sensor developed for color image scanner.

Features

Number of effective pixels: 8100 pixels (2700 pixels × 3).
Pixel size: 8µm × 8µm (8µm pitch).
Distance between line: 32µm (4 Lines).
Number of output 3 (R, G, B).
Single-sided readout.
Clamp circuit are on-chip.
Ultra high sensitivity/Ultra low lag.
Single 12V power supply.
Maximum data rate: 9MHz (3MHz × 3).
Input Clock Pulse: CMOS 5V drive.
Package: 22 pin Plastic-DIP (400 mil) Absolute Maximum.
