ILX553B - 5150-pixel CCD Linear Sensor

Name: ILX553B
SKU: ILX553B-870525

Sony

📥 Download Datasheet

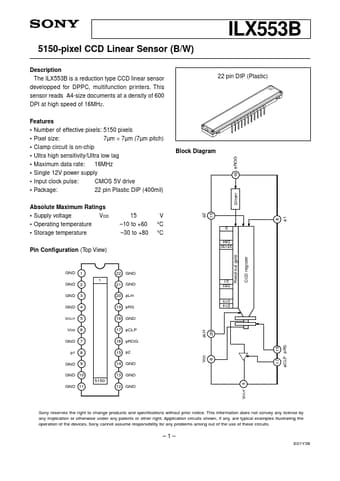

ILX553B Datasheet Preview — Preview of ILX553B PDF

Datasheet Details

Part number	ILX553B
Manufacturer	Sony
File Size	105.42 KB
Description	5150-pixel CCD Linear Sensor
Datasheet	ILX553B-Sony.pdf

ILX553B Product details

Description

The ILX553B is a reduction type CCD linear sensor developped for DPPC, multifunction printers.This sensor reads A4-size documents at a density of 600 DPI at high speed of 16MHZ.22 pin DIP (Plastic)

Features

Number of effective pixels: 5150 pixels.
Pixel size: 7µm × 7µm (7µm pitch).
Clamp circuit is on-chip.
Ultra high sensitivity/Ultra low lag.
Maximum data rate: 16MHz.
Single 12V power supply.
Input clock pulse: CMOS 5V drive.
Package: 22 pin Plastic DIP (400mil) Block Diagram 16 φROG Driver φ2 15 Absolute Maximum Ratings.
Supply voltage VDD.
Operating temperature.
Storage temper.
