ILX503A - 2048-pixel CCD Linear Image Sensor

Sony Corporation

📥 Download Datasheet

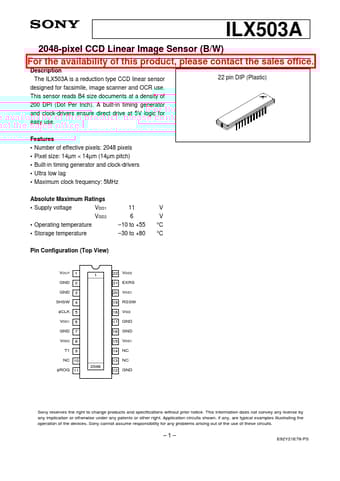

ILX503A Datasheet Preview — Preview of ILX503A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX503A
Manufacturer	Sony Corporation
File Size	198.52 KB
Description	2048-pixel CCD Linear Image Sensor
Datasheet	ILX503A_SonyCorporation.pdf

ILX503A Product details

Description

The ILX503A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use.

Features

Number of effective pixels: 2048 pixels.
Pixel size: 14µm × 14µm (14µm pitch).
Built-in timing generator and clock-drivers.
Ultra low lag.
Maximum clock frequency: 5MHz Absolute Maximum Ratings.
Supply voltage VDD1 VDD2.
Operating temperature.
Storage temperature Pin Configuration (Top View) 22 pin DIP (Plastic) 11 6.
10 to +55.
30 to +80 V V °C °C VOUT GND GND SHSW φCLK VDD1 GND VDD2 T1 1 2 3 4 5 6 7 8.
