ILX103A - 3000-pixel CCD Linear Image Sensor

Description

The ILX103A is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use.

A built-in timing generator and clock-drivers ensure single 5V power supply for easy use.

Features

  • Number of effective pixels: 3000 pixels.
  • Pixel size: 7µm × 200µm (7µm pitch).
  • S/H output.
  • Built-in timing generator and clock-drivers.
  • Output amplifier gain switching function (2-level: switching gain ratio 1:4).
  • SIP small package.
  • Clock frequency: 500kHz (Typ. ), 100kHz (Min. ), 1MHz (Max. ) Absolute Maximum Ratings.
  • Supply voltage VDD.
  • Operating temperature.
  • Storage temperature 16 pin SIP (Ceramic) Interna.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILX115LA 5000-pixel X 3 line CCD Linear Sensor Sony Corporation
ILX128MA 5350-pixel X 6-line CCD Linear Sensor Sony Corporation
ILX146K The Industrys First Digital Copier CCD Linear Sensor ETC
ILX207DW Interface IC of data serial transfer Integral
ILX232 Drivers/Receivers IK Semiconductor

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
ILX137K 10700-pixel x 6-line CCD Linear Sensor
ILX553B 5150-pixel CCD Linear Sensor
ILX554B 2048-pixel CCD Linear Sensor
ILX558K 5340-pixel x 3-line CCD Linear Sensor

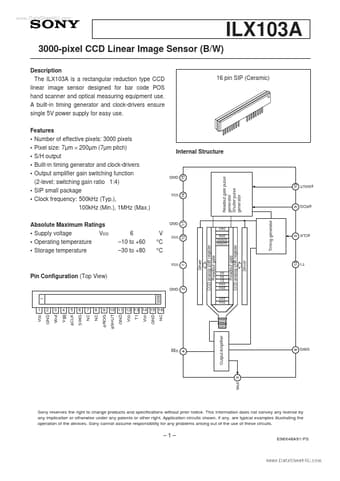

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
www.DataSheet4U.com ILX103A 3000-pixel CCD Linear Image Sensor (B/W) Description The ILX103A is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use. A built-in timing generator and clock-drivers ensure single 5V power supply for easy use. Features • Number of effective pixels: 3000 pixels • Pixel size: 7µm × 200µm (7µm pitch) • S/H output • Built-in timing generator and clock-drivers • Output amplifier gain switching function (2-level: switching gain ratio 1:4) • SIP small package • Clock frequency: 500kHz (Typ.), 100kHz (Min.), 1MHz (Max.
