ILX532A - 7500-pixel CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

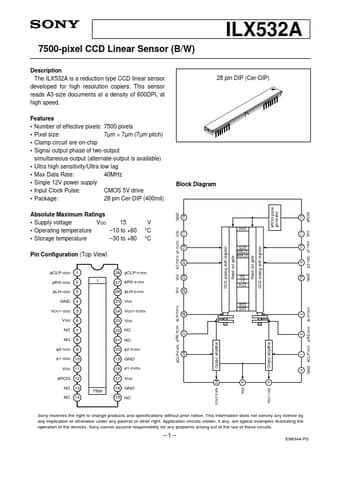

ILX532A Datasheet Preview — Preview of ILX532A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX532A
Manufacturer	Sony Corporation
File Size	218.06 KB
Description	7500-pixel CCD Linear Sensor
Datasheet	ILX532A_SonyCorporation.pdf

ILX532A Product details

Description

The ILX532A is a reduction type CCD linear sensor developed for high resolution copiers.

Features

Number of effective pixels: 7500 pixels.
Pixel size: 7µm × 7µm (7µm pitch).
Clamp circuit are on-chip.
Signal output phase of two-output simultaneous-output (alternate-output is available).
Ultra high sensitivity/Ultra low lag.
Max Data Rate: 40MHz.
Single 12V power supply.
Input Clock Pulse: CMOS 5V drive.
Package: 28 pin Cer-DIP (400mil) Absolute Maximum Ratings.
Supply voltage VDD 15.
Operating.
