SVF6N80MJ, SVF6N80D - 800V N-CHANNEL MOSFET

Name: SVF6N80MJ
SKU: SVF6N80MJ-1575010

Silan Microelectronics

📥 Download Datasheet

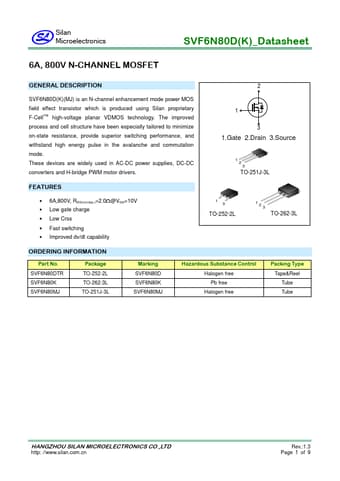

SVF6N80MJ Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF6N80MJ, SVF6N80D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SVF6N80MJ, SVF6N80D
Manufacturer	Silan Microelectronics
File Size	279.72 KB
Description	800V N-CHANNEL MOSFET
Datasheet	SVF6N80D-SilanMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SVF6N80MJ, SVF6N80D. Please refer to the document for exact specifications by model.

SVF6N80MJ Product details

Description

SVF6N80D(K)(MJ) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.

Features

6A,800V, RDS(on)(typ. )=2.0@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 13 TO-252-2L 12 3 TO-262-3L.
