SVF6N80AF, SVF6N80AD - 800V N-CHANNEL MOSFET

Name: SVF6N80AF
SKU: SVF6N80AF-1573619

Silan Microelectronics

📥 Download Datasheet

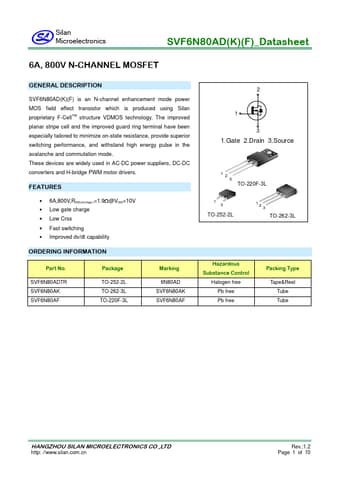

SVF6N80AF Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF6N80AF, SVF6N80AD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SVF6N80AF, SVF6N80AD
Manufacturer	Silan Microelectronics
File Size	446.29 KB
Description	800V N-CHANNEL MOSFET
Datasheet	SVF6N80AD-SilanMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SVF6N80AF, SVF6N80AD. Please refer to the document for exact specifications by model.

SVF6N80AF Product details

Description

SVF6N80AD(K)(F) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

Features

6A,800V,RDS(on)(typ. )=1.9@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability.
