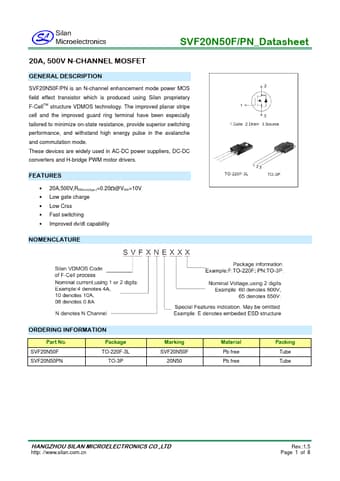

SVF20N50F/PN_Datasheet
20A 500V N-CHANNEL MOSFET
GENERAL DESCRIPTION
SVF20N50F/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are widely used in AC-DC power suppliers, DCDC converters and H-bridge PWM motor drivers.
FEATURES
∗ 20A, 500V, RDS(on(typ)=0.20Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability
NOMENCLATURE
ORDERING INFORMATION
Part No.
