SVF13N50PN - 500V N-CHANNEL MOSFET

Download the SVF13N50PN datasheet PDF. This datasheet also covers the SVF13N50T variant, as both devices belong to the same 500v n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

SVF13N50T/F/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.

Features

  • 13A, 500V, RDS(on)(typ. )= 0.44@VGS=10V.
  • Low gate charge.
  • Low Crss.
  • Fast switching.
  • Improved dv/dt capability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SVF13N50T-SL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SVF13N50PN
Manufacturer SL
File Size 564.76 KB
Description 500V N-CHANNEL MOSFET
Datasheet download datasheet SVF13N50PN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SVF13N50CFJ 500V N-CHANNEL MOSFET Silan Microelectronics
SVF13N60AF MOSFET Silan Microelectronics
SVF10N60CF 600V N-CHANNEL MOSFET Silan Microelectronics
SVF10N60CFJ 600V N-CHANNEL MOSFET Silan Microelectronics
SVF10N60CFJD 600V N-CHANNEL MOSFET Silan Microelectronics

Other Datasheets by SL

Part Number Description
SVF13N50F 500V N-CHANNEL MOSFET
SVF13N50T 500V N-CHANNEL MOSFET
SVF2N60C 600V N-CHANNEL MOSFET
SVF2N60CD 600V N-CHANNEL MOSFET
SVF2N60CF 600V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

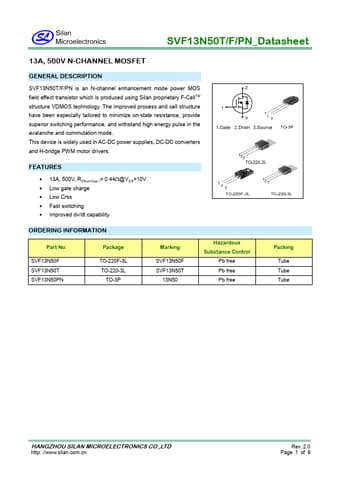

SVF13N50T/F/PN_Datasheet 13A, 500V N-CHANNEL MOSFET GENERAL DESCRIPTION SVF13N50T/F/PN is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. This device is widely used in AC-DC power supplies, DC-DC converters and H-bridge PWM motor drivers. FEATURES  13A, 500V, RDS(on)(typ.)= 0.44@VGS=10V  Low gate charge  Low Crss  Fast switching  Improved dv/dt capability ORDERING INFORMATION Part No.
