BTS132 - MOSFET

Siemens Semiconductor Group

Datasheet Details

Part number	BTS132
Manufacturer	Siemens Semiconductor Group
File Size	290.00 KB
Description	MOSFET
Datasheet	BTS132_SiemensSemiconductorGroup.pdf

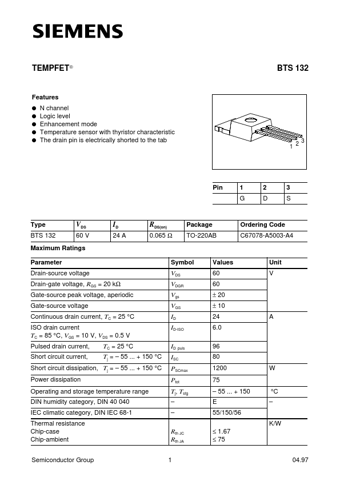

q q q q q N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 132 VDS 60 V ID 24 A RDS(on) 0.065 Ω Package TO-220AB Ordering Code C67078-A5003-A4 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source peak voltage, aperiodic Gate-source voltage Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5.
