q q q q

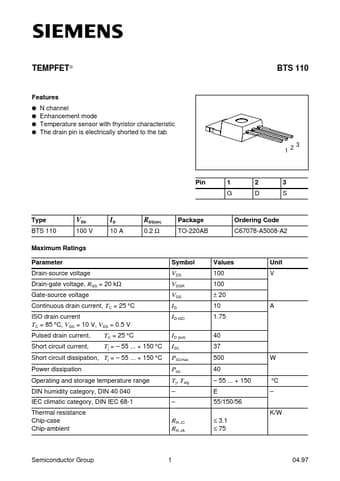

N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab
3 1 2
Pin
1 G
2 D
3 S
Type BTS 110
VDS
100 V
ID
10 A
RDS(on)
0.2 Ω
Package TO-220AB
Ordering Code C67078-A5008-A2
Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit current, Symbol.
