BTS131 - MOSFET

Siemens Semiconductor Group

Datasheet Details

Part number	BTS131
Manufacturer	Siemens Semiconductor Group
File Size	295.08 KB
Description	MOSFET
Datasheet	BTS131_SiemensSemiconductorGroup.pdf

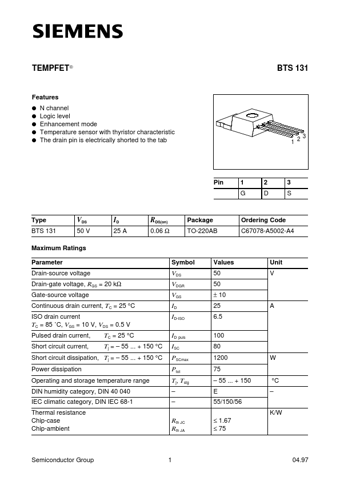

q q q q q N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 131 VDS 50 V ID 25 A RDS(on) 0.06 Ω Package TO-220AB Ordering Code C67078-A5002-A4 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source voltage Continuous drain current, TC = 25 °C ISO drain current TC = 85 ˚C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circui.
