BTS130 - MOSFET

Siemens Semiconductor Group

Datasheet Details

Part number	BTS130
Manufacturer	Siemens Semiconductor Group
File Size	333.18 KB
Description	MOSFET
Datasheet	BTS130_SiemensSemiconductorGroup.pdf

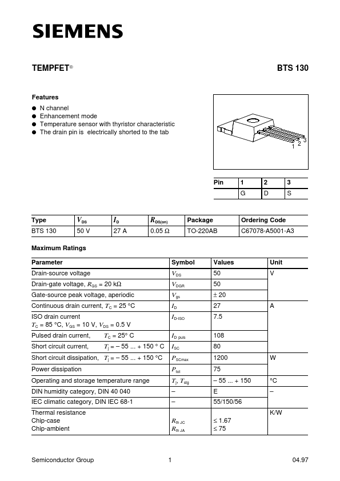

q q q q N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab 1 2 3 Pin 1 G 2 D 3 S Type BTS 130 VDS 50 V ID 27 A RDS(on) 0.05 Ω Package TO-220AB Ordering Code C67078-A5001-A3 Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source peak voltage, aperiodic Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circuit.
