EDGE4717D Per Pin Precision Measurement

EDGE4717D Description

Edge4717D Quad Channel, Per Pin Precision Measurement Unit TEST AND MEASUREMENT PRODUCTS .
The Edge4717D is a precision measurement unit designed for automated test equipment and instrumentation.

EDGE4717D Features

* a PMU that can force or measure voltage over a typical 15V I/O range, and supports 4 current ranges: ± 3.2 µA, ± 80 µA, ± 2 mA, ± 30 mA. The Edge4717D has an on-board window comparator per channel that provides two bits of information
* DUT too high and DUT too low. There is also a monitor p

EDGE4717D Applications

* Automated Test Equipment - Memory Testers - VLSI Testers - Mixed Signal Tester SNK_MON SRC_MON HiZ VINP REF FV / FI
* MI / MV
* IVMAX IVMIN COMP_IN DISABLE COMPARATORS DETECTOR LOGIC OVER-CURRENT DETECT OVER-CURRENT DETECT SNK_OUT OPEN_RLY SRC_OUT FORCE GUARD SENSE DUTLTH DUTGTL I

📥 Download Datasheet

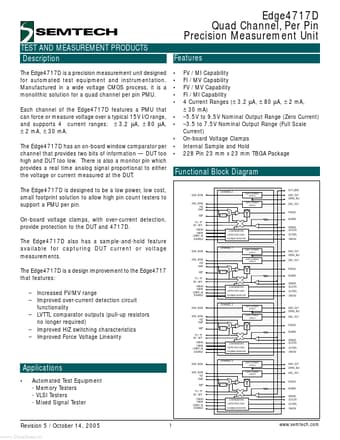

Preview of EDGE4717D PDF
