EDGE6420 - Per-Pin Electronics Companion DAC

EDGE6420 Description

Edge6420 Per-Pin Electronics Companion DAC www.DataSheet4U.com HIGH-PERFORMANCE PRODUCTS * ATE .
Features 64 Total DACs/Package Including:. Wide Voltage Output Range (17V Range); Useful for Supervoltage. 44 Voltage DACs / Packag.

EDGE6420 Features

* 64 Total DACs/Package Including:
* Wide Voltage Output Range (17V Range); Useful for Supervoltage
* 44 Voltage DACs / Package
* 20 Current DACs / Package
* Adjustable Full Scale Range
* Adjustable Output Voltage Offset
* Small 13x13mm BGA Package

EDGE6420 Applications

* requiring multiple integrated voltage or current DAC outputs. Voltage DACs
* Wide voltage (17V range)
* Adjustable full scale range
* Adjustable minimum output
* 13 bits resolution Current DACs
* ~3.6 mA full scale range
* Adjustable full scale range

📥 Download Datasheet

Preview of EDGE6420 PDF

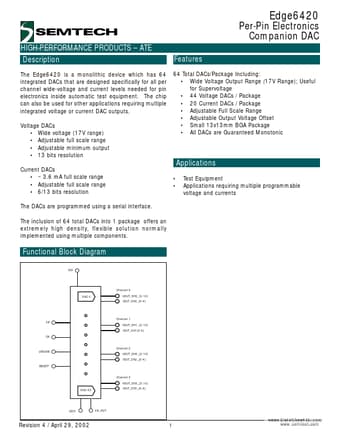

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EDGE6420
Manufacturer
Semtech Corporation
File Size
292.56 KB
Datasheet
EDGE6420_SemtechCorporation.pdf
Description
Per-Pin Electronics Companion DAC
