EDGE629 - 1 GHz Timing Deskew and Quad Fanout Element

EDGE629 Description

Edge629 1 GHz Timing Deskew and Quad Fanout Element www.DataSheet4U.com TEST AND MEASUREMENT PRODUCTS .
Featur es. Fmax ≥ 1 GHz Independent Falling Edge Adjust Small Footprint (10 mm x.

EDGE629 Features

* a thermal diode string consisting of 5 diodes as shown in Figure 4 below. This string allows accurate die temperature measurements. ANODE SFE DAC Code Resolution 0 1 1 XXXXXXX 0000000 1111111 N/A 2.5 ps 2.5 ps 7 Bit DAC Bias Current ∆T Temperature Coefficient =
* 7.8 mV/˚C CATHODE

EDGE629 Applications

* the Edge629 buffers, distributes, and aligns timing signals across multiple channels (typically found inside Memory Test Systems). It is also suitable for per pin deskew in Logic Testers. The Edge629 supports:
* Minimum pulse width = 330 ps with Falling Edge Adjust disabled, 500 ps with Fal

📥 Download Datasheet

Preview of EDGE629 PDF

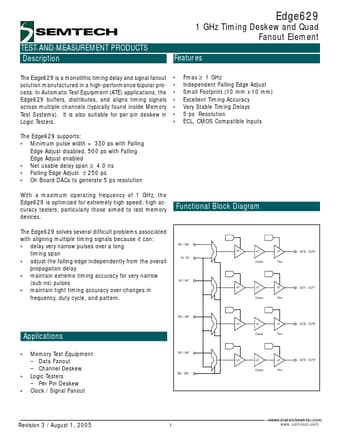

datasheet Preview Page 2 datasheet Preview Page 3
