Edge647 - Pin Electronics Driver/ Window Comparator/ and Switch Matrix

Edge647 Description

Edge647 Pin Electronics Driver, Window Comparator, and Switch Matrix EDGE HIGH-PERFORMANCE PRODUCTS .
The Edge647 is an integrated trinary driver, window comparator, and switch matrix pin electronics solution manufactured in a wide voltage CMOS process.

Edge647 Features

* SW1 LOAD
* Pin Compatible with the Edge646 100 MHz Operation 12V I/O Range Programmable Output Levels Flex In digital Inputs (Technology Independent) Three Level Driver Extremely Low Leakage Currents (~0 nA) Small Footpr

Edge647 Applications

* It is a higher performance, pin and functionally compatible version of the Edge646. Applications
* Low Cost Automatic Test Equipment Functional Block Diagram VH VTT VL DATA DATA
* DOUT DVR EN DVR EN
* VTT EN VTT EN
* SW0 SW0 EN

📥 Download Datasheet

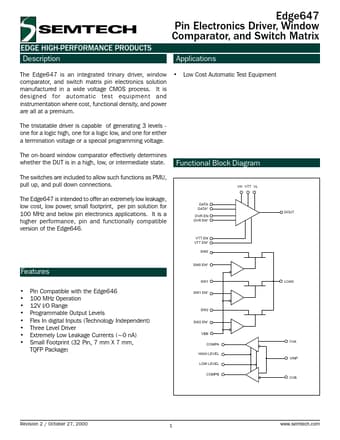

Preview of Edge647 PDF
