2SC3855 - SILICON POWER TRANSISTOR

The 2SC3855 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

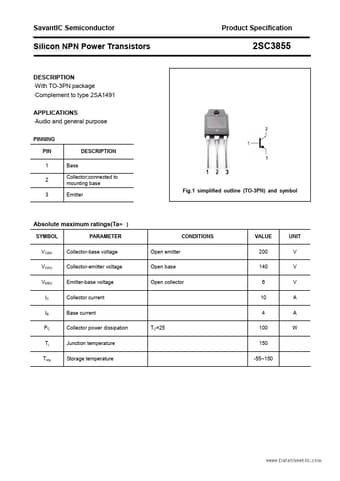

Official preview page of the 2SC3855 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC3855
Manufacturer SavantIC
File Size 331.38 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3855_SavantIC.pdf
Additional preview pages of the 2SC3855 datasheet.

2SC3855 Product details

Description

With TO-3PN package Complement to type 2SA1491 APPLICATIONS Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 Open emitter Open
