2SC3858 - SILICON POWER TRANSISTOR

The 2SC3858 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

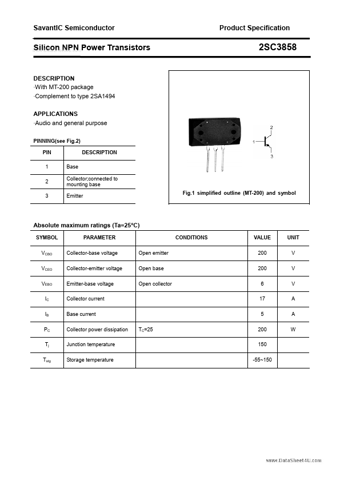

Official preview page of the 2SC3858 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC3858
Manufacturer SavantIC
File Size 197.81 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3858_SavantIC.pdf
Additional preview pages of the 2SC3858 datasheet.

2SC3858 Product details

Description

With MT-200 package Complement to type 2SA1494 APPLICATIONS Audio and general purpose PINNING(see Fig.2) PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (MT-200) and symbol DESCRIPTION Absolute maximum ratings (Ta=25°C) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 Op
