2SC3831 - SILICON POWER TRANSISTOR

Description

With TO-3PN package High voltage High speed switching APPLICATIONS For switching regulator and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= )

📥 Download Datasheet

Datasheet Details

Part number 2SC3831
Manufacturer SavantIC
File Size 214.40 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3831 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3831 Silicon NPN Transistor Sanken electric
2SC3831 NPN Transistor INCHANGE
2SC383 NPN Transistor Toshiba Semiconductor
2SC3830 Silicon NPN Transistor Sanken electric
2SC3830 NPN Transistor INCHANGE

Other Datasheets by SavantIC

Part Number Description
2SC3830 SILICON POWER TRANSISTOR
2SC3832 SILICON POWER TRANSISTOR
2SC3834 SILICON POWER TRANSISTOR
2SC3835 SILICON POWER TRANSISTOR
2SC3822 SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

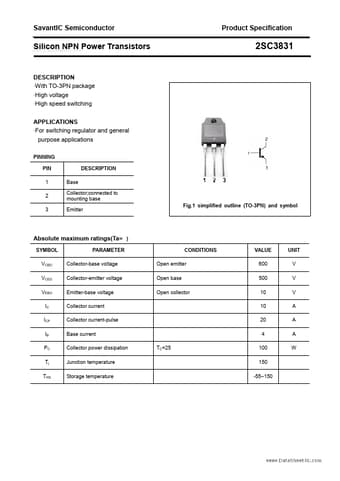

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3831 DESCRIPTION ·With TO-3PN package ·High voltage ·High speed switching APPLICATIONS ·For switching regulator and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC ICP IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-pulse Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 600 500 10 10 20 4 100 150 -55~150 UNIT V V V A A A W SavantIC Semiconductor www.
