STS9P2UH7 - P-channel Power MOSFET

STS9P2UH7 Description

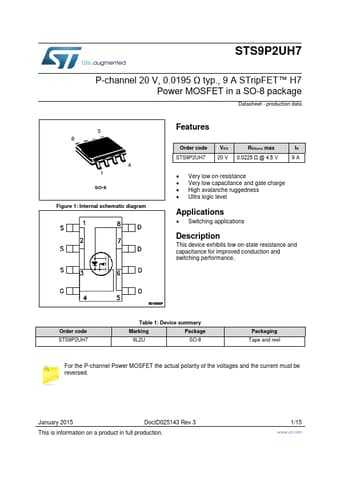

STS9P2UH7 P-channel 20 V, 0.0195 Ω typ., 9 A STripFET™ H7 Power MOSFET in a SO-8 package Datasheet - production data 5 8 1 SO-8 4 Figure 1: Inter.
This device exhibits low on-state resistance and capacitance for improved conduction and switching performance.

STS9P2UH7 Features

* Order code STS9P2UH7 VDS 20 V RDS(on) max 0.0225 Ω @ 4.5 V ID 9A
* Very low on-resistance
* Very low capacitance and gate charge
* High avalanche ruggedness
