STS9NF3LL, N-CHANNEL POWER MOSFET

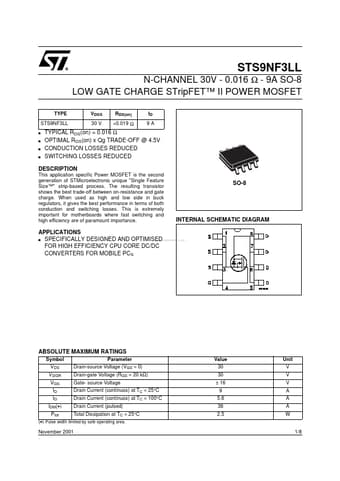

N-CHANNEL 30V - 0.016 Ω - 9A SO-8 LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE STS9NF3LL s s s s STS9NF3LL VDSS 30 V RDS(on) <0.019 Ω ID 9A TYP.
This application specific Power MOSFET is the second generation of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS9NF3LL_STMicroelectronics.pdf

STS9NF3LL Datasheet Preview — Preview of STS9NF3LL PDF

Datasheet Details

Part number:

STS9NF3LL

Manufacturer:

STMicroelectronics ↗

File Size:

212.53 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED www. DataSheet4U. com FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS FOR MOBILE PCS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current
