STS9NF30L - N-CHANNEL POWER MOSFET

Description

This application specific Power Mosfet is the third generation of STMicroelectronics unique ”Single Feature Size™” strip-based process.

The resulSO-8 ting transistor shows the best trade-off between on-resistance and gate charge.

📥 Download Datasheet

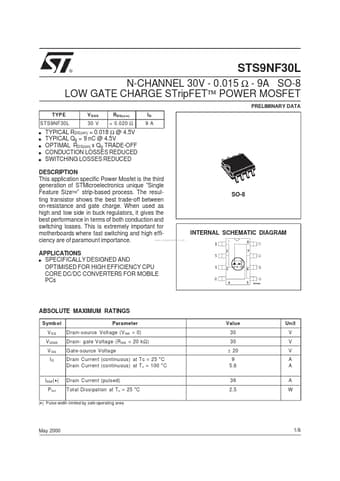

Datasheet preview – STS9NF30L

Datasheet Details

Part number STS9NF30L
Manufacturer STMicroelectronics
File Size 69.08 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet STS9NF30L Datasheet
Additional preview pages of the STS9NF30L datasheet.

📁 Similar Datasheet

  • STS9012 - PNP Silicon Transistor (AUK)
  • STS9013 - NPN Silicon Transistor (AUK)
  • STS9014 - NPN Silicon Transistor (AUK)
  • STS9015 - PNP Silicon Transistor (AUK)
  • STS9018 - NPN Silicon Transistor (AUK)
  • STS9D8NH3LL - Dual N-channel Power MOSFET (STMicroelectronics)
  • STS9P2UH7 - P-channel Power MOSFET (STMicroelectronics)
  • STS9P3LLH6 - P-Channel Power MOSFET (STMicroelectronics)
  • STS-2308-01 - DYNAMIC MICRO SPEAKER (STAR ACOUSTICS)
  • STS-8857 - Transmissive Switch Assembly (Silonex)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
® STS9NF30L N-CHANNEL 30V - 0.015 Ω - 9A SO-8 LOW GATE CHARGE STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS9NF 30L s s s s s V DSS 30 V R DS(on) < 0.020 Ω ID 9 A TYPICAL RDS(on) = 0.018 Ω @ 4.5V TYPICAL Qg = 9 nC @ 4.5V OPTIMAL RDS(on) x Qg TRADE-OFF CONDUCTION LOSSES REDUCED SWITCHING LOSSES REDUCED DESCRIPTION This application specific Power Mosfet is the third generation of STMicroelectronics unique ”Single Feature Size™” strip-based process. The resulSO-8 ting transistor shows the best trade-off between on-resistance and gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for INTERNAL SCHEMATIC DIAGRAM motherboards where fast switching and high effiwww.
