STS9012 - PNP Silicon Transistor

STS9012 Description

Semiconductor STS9012 PNP Silicon Transistor .
General purpose application. Switching application. Excellent hFE linearity. Complementary pair with.

STS9012 Features

* Excellent hFE linearity.
* Complementary pair with STS9013 Ordering Information Type NO. STS9012 Marking STS9012 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 www. DataSheet4U. com unit : mm 2.25±0.1 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.

📥 Download Datasheet

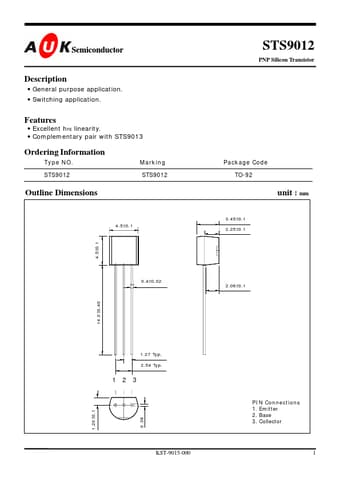

Preview of STS9012 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STS9012
Manufacturer
AUK
File Size
134.62 KB
Datasheet
STS9012_AUK.pdf
Description
PNP Silicon Transistor
