STS10NF30L N-CHANNEL PowerMESH MOSFET

STS10NF30L Description

® STS10NF30L N - CHANNEL 30V - 0.011Ω - 10A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS10NF30L s s V DSS 30 V R DS( on) < 0.0135 Ω ID 1.
This Power MOSFET is the second generation of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

STS10NF30L Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID I DM (
* ) P tot Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS

📥 Download Datasheet

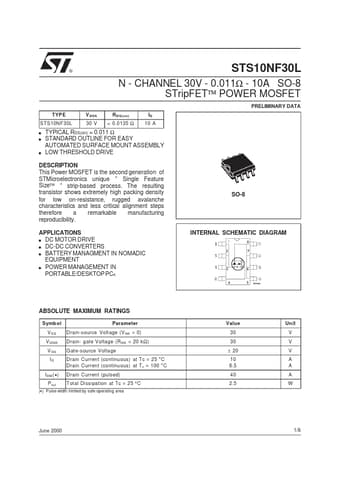

Preview of STS10NF30L PDF
