STS12NF30L, N-CHANNEL PowerMESH MOSFET

® STS12NF30L N - CHANNEL 30V - 0.0085Ω - 12A SO-8 STripFET™ POWER MOSFET TYPE STS12NF30L s s V DSS 30 V R DS(on) < 0.01 Ω ID 12 A s TYPICAL RDS.
This Power MOSFET is the second generation of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

STS12NF30L_STMicroelectronics.pdf

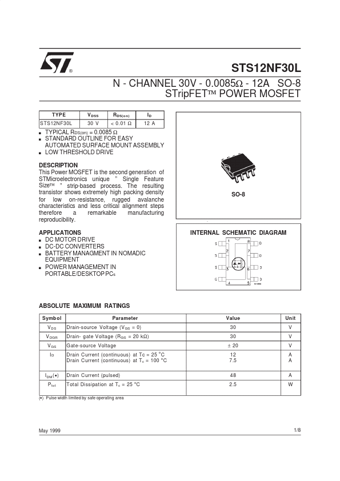

STS12NF30L Datasheet Preview — Preview of STS12NF30L PDF

Datasheet Details

Part number:

STS12NF30L

Manufacturer:

STMicroelectronics ↗

File Size:

82.72 KB

Description:

N-CHANNEL PowerMESH MOSFET

Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω) G ate-source Vo
