STM32WLE5JC, STM32WLE5J8 - Multiprotocol LPWAN 32-bit Arm Cortex-M4 MCUs

STM32WLE5JC Description

STM32WLE5J8 STM32WLE5JB STM32WLE5JC Multiprotocol LPWAN 32-bit Arm®Cortex®-M4 MCUs, LoRa®, (G)FSK, (G)MSK, BPSK, up to 256KB Flash, 64KB SRAM Datashee.

STM32WLE5JC Features

* Radio
* Frequency range: 150 MHz to 960 MHz
* Modulation: LoRa®, (G)FSK, (G)MSK and BPSK
* RX sensitivity:
* 125 dBm for 2-FSK (at 1.2 Kbit/s),
* 148 dBm for LoRa® (at 10.4 kHz, spreading factor 12)
* Transmitter high output power, programmable up

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32WLE5JC, STM32WLE5J8. Please refer to the document for exact specifications by model.

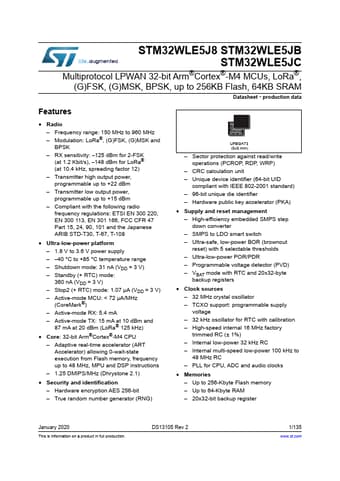

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32WLE5JC, STM32WLE5J8
Manufacturer
STMicroelectronics ↗
File Size
2.67 MB
Datasheet
STM32WLE5J8-STMicroelectronics.pdf
Description
Multiprotocol LPWAN 32-bit Arm Cortex-M4 MCUs
Note
This datasheet PDF includes multiple part numbers: STM32WLE5JC, STM32WLE5J8.
Please refer to the document for exact specifications by model.
