STM-S3E - Stratum 3E Timing Module

This page provides the datasheet information for the STM-S3E, a member of the STM-S3E_Connor Stratum 3E Timing Module family.

Datasheet Summary

Description

Connor-Winfield’s STM-S3E timing module provides Stratum 3E synchronization for a complete system clock solution in a single module in accordance with GR-1244CORE Issue 2, GR-253-CORE Issue 3, and ITU-T G.812 Option III.

Features

  • Dual Input References.
  • Hitless Switch Over.
  • 1.544 MHz -38.88 MHz.
  • 8 kHz Output.
  • 12 ppb Composite Hold Over Mode.
  • Fast Acquisition Mode.
  • Hold Over Good Indicator.
  • Phase Buildout Indicator.
  • LOR Alarms.
  • Reference Frequency Limit Alarm.

📥 Download Datasheet

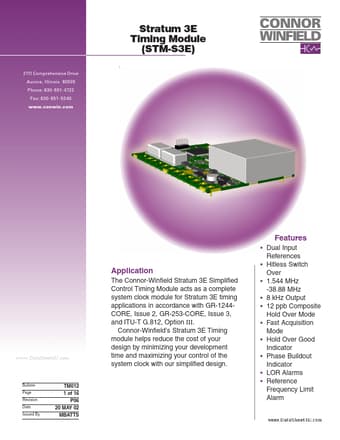

Datasheet preview – STM-S3E
