STM-3116 - High Linearity Active Transmit Mixer

Datasheet Summary

Description

The Sirenza Microdevices’ STM-3116 is a high linearity active mixer for use in a wide variety of communication systems covering the 2100-2500 MHz frequency bands.

Features

  • Functional Block Diagram VEE VCC VEE RFN RFP VEE 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 VEE VCC VEE LON LOP VEE VCC IFP.
  • Active mixer with 17 dB conversion gain Integrated 0dBm LO drive and IF amplifier Differential or single-ended input Single supply operation (+5V) Broadband resistive 50Ω impedance on all three ports Low LO-RF leakage UMTS/ISM transmitters www. DataSheet4U. com VCC IFN.

📥 Download Datasheet

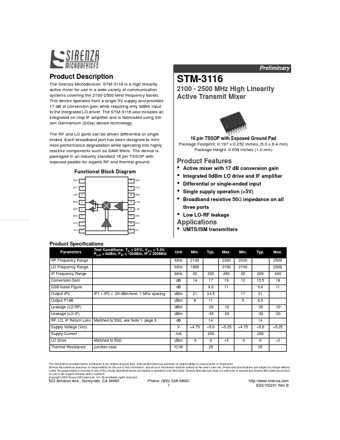

Datasheet preview – STM-3116

Datasheet Details

Part number STM-3116
Manufacturer Sirenza Microdevices
File Size 207.31 KB
Description High Linearity Active Transmit Mixer
Datasheet download datasheet STM-3116 Datasheet
Additional preview pages of the STM-3116 datasheet.

📁 Similar Datasheet

  • STM-1116 - 800 - 1000 MHz High Linearity Active Transmit Mixer (ETC)
  • STM-2016 - 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer (Stanford Microdevices)
  • STM-S3 - STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES (Connor-Winfield)
  • STM-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STM025QVT-001 - LCD Module (Space Display)
  • STM1001 - Reset Circuit (ST Microelectronics)
  • STM101N - N-Channel MOSFET (SamHop Microelectronics)
  • STM102D - Dual Enhancement Mode Field Effect Transistor (SamHop)
  • STM105N - N-Channel MOSFET (SamHop Microelectronics)
  • STM1061 - Low Power Voltage Detector (ST Microelectronics)
Other Datasheets by Sirenza Microdevices

    Full PDF Text Transcription

    Click to expand full text
    Preliminary Product Description The Sirenza Microdevices’ STM-3116 is a high linearity active mixer for use in a wide variety of communication systems covering the 2100-2500 MHz frequency bands. This device operates from a single 5V supply and provides 17 dB of conversion gain while requiring only 0dBm input to the integrated LO driver. The STM-3116 also includes an integrated on chip IF amplifier and is fabricated using Silicon Germanium (SiGe) device technology. The RF and LO ports can be driven differential or single ended. Each broadband port has been designed to minimize performance degradation while operating into highly reactive components such as SAW filters. The device is packaged in an industry standard 16 pin TSSOP with exposed paddle for superb RF and thermal ground.
