STM102D, Dual Enhancement Mode Field Effect Transistor

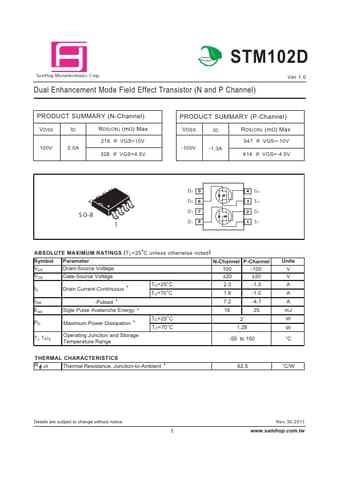

G P STM102D Ver 1.0 S a mHop Microelectronics C orp.

Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRODUCT SUMMARY (N-Channel) V DSS 100V PRODUCT SUMMARY (P-Channel) V DSS -100V ID 2.0A R DS(ON) (m Ω) Max 216 @ VGS=10V ID -1.3A R DS(ON) (m Ω) Max 547 @ VGS=-10V 614 @ VGS=-4.5V 328 @ VGS=4.5V D2 D2 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1 D1 ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter Drain-Source Vo
