STM105N - N-Channel MOSFET

Datasheet Summary

Features

  • Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. S O-8 1.

📥 Download Datasheet

Datasheet preview – STM105N

Datasheet Details

Part number STM105N
Manufacturer SamHop Microelectronics
File Size 119.55 KB
Description N-Channel MOSFET
Datasheet download datasheet STM105N Datasheet
Additional preview pages of the STM105N datasheet.

📁 Similar Datasheet

  • STM1001 - Reset Circuit (ST Microelectronics)
  • STM102D - Dual Enhancement Mode Field Effect Transistor (SamHop)
  • STM1061 - Low Power Voltage Detector (ST Microelectronics)
  • STM1068 - Smart voltage supervisor (STMicroelectronics)
  • STM11 - Power control switch (STMicroelectronics)
  • STM1403 - 3V FIPS-140 Security Supervisor (ST Microelectronics)
  • STM1404 - Security Supervisor (ST Microelectronics)
  • STM1645-10 - RF POWER MODULES SATELLITE COMMUNICATIONS APPLICATIONS (ST Microelectronics)
  • STM1645-30 - RF POWER MODULE SATELLITE COMMUNICATION APPLICATIONS (ST Microelectronics)
  • STM1810 - Low Power Reset (ST Microelectronics)
Other Datasheets by SamHop Microelectronics
  • STM101N - N-Channel MOSFET
  • STM121N - Dual N-Channel MOSFET
  • STM122N - Dual N-Channel MOSFET
  • STM132N - N-Channel Logic Level Enhancement Mode Field Effect Transistor
  • STM201N - N-Channel MOSFET
  • STM301N - N-Channel MOSFET
  • STM4410A - N-Channel Enhancement Mode Field Effect Transistor
  • STM4431 - P-Channel Enhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text

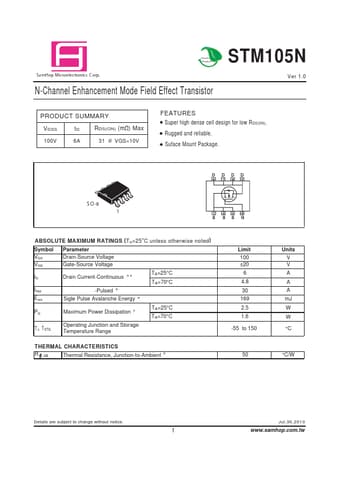

Green Product STM105N Ver 1.0 S a mHop Microelectronics C orp. N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 100V ID 6A R DS(ON) (m Ω) Max 31 @ VGS=10V FEATURES Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. S O-8 1 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM EAS PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous b ae Limit 100 ±20 TA=25°C TA=70°C d Units V V A A A mJ W W °C 6 4.8 30 169 -Pulsed Sigle Pulse Avalanche Energy Maximum Power Dissipation a TA=25°C TA=70°C 2.5 1.
