STM-2016 - 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer

Datasheet Summary

Description

The Stanford Microdevices’ STM-2016 is a high linearity active mixer for use in a wide variety of communication systems covering the 1800-2200 MHz frequency bands.

Features

  • Active mixer with conversion gain No need for separate external LO driver Low LO drive level required to drive mixer IF and LO ports may be driven single-ended Single supply operation (+5V) Broadband resistive 50Ω impedances on all three ports.

📥 Download Datasheet

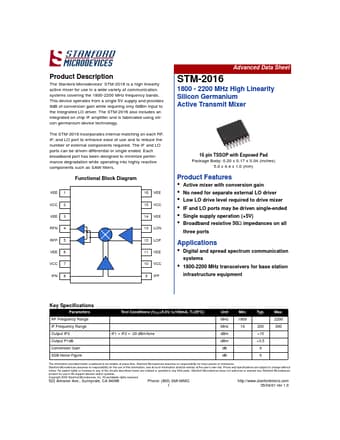

Datasheet preview – STM-2016

Datasheet Details

Part number STM-2016
Manufacturer Stanford Microdevices
File Size 134.80 KB
Description 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer
Datasheet download datasheet STM-2016 Datasheet
Additional preview pages of the STM-2016 datasheet.

📁 Similar Datasheet

  • STM-1116 - 800 - 1000 MHz High Linearity Active Transmit Mixer (ETC)
  • STM-3116 - High Linearity Active Transmit Mixer (Sirenza Microdevices)
  • STM-S3 - STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES (Connor-Winfield)
  • STM-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STM025QVT-001 - LCD Module (Space Display)
  • STM1001 - Reset Circuit (ST Microelectronics)
  • STM101N - N-Channel MOSFET (SamHop Microelectronics)
  • STM102D - Dual Enhancement Mode Field Effect Transistor (SamHop)
  • STM105N - N-Channel MOSFET (SamHop Microelectronics)
  • STM1061 - Low Power Voltage Detector (ST Microelectronics)
Other Datasheets by Stanford Microdevices

    Full PDF Text Transcription

    Click to expand full text
    Advanced Data Sheet Product Description The Stanford Microdevices’ STM-2016 is a high linearity active mixer for use in a wide variety of communication systems covering the 1800-2200 MHz frequency bands. This device operates from a single 5V supply and provides 9dB of conversion gain while requiring only 0dBm input to the integrated LO driver. The STM-2016 also includes an integrated on chip IF amplifier and is fabricated using silicon germanium device technology. The STM-2016 incorporates internal matching on each RF, IF, and LO port to enhance ease of use and to reduce the number of external components required. The IF and LO ports can be driven differential or single ended.
