STM32WL33KC, STM32WL33C8 Multiprotocol LPWAN 32-bit MCU

STM32WL33KC Description

STM32WL33xx Datasheet Multiprotocol LPWAN 32-bit MCU Arm® Cortex®-M0+ (G)2FSK, (G)4FSK, ASK, D-BPSK, up to 256KB flash, 32KB SRAM VFQFPN48 (6 x 6 mm).

STM32WL33KC Features

* Includes ST state-of-the-art patented technology
* Ultra-low power sub-1GHz wireless system-on-chip
* Programmable MCU
* Core: Arm® Cortex®-M0+ 32-bit, running up to 64 MHz
* Program memory: 64-Kbyte / 128-Kbyte / 256-Kbyte flash memory
* Data memory

STM32WL33KC Applications

* Asset tracking
* Wireless sensors
* Industrial monitoring and control
* Home energy management systems
* Smart home and alarm systems
* Building automation
* Heat cost allocator
* Remote metering STM32WL33xx DS14221 - Rev 3 page 3/

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32WL33KC, STM32WL33C8. Please refer to the document for exact specifications by model.

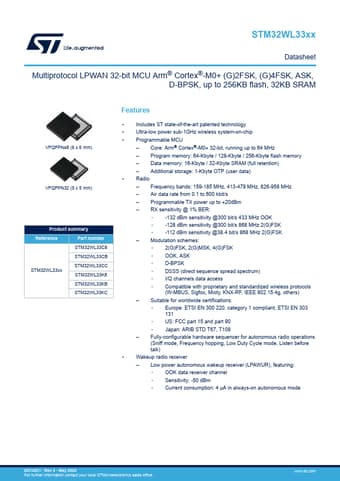

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32WL33KC, STM32WL33C8
Manufacturer
STMicroelectronics ↗
File Size
1.10 MB
Datasheet
STM32WL33C8-STMicroelectronics.pdf
Description
Multiprotocol LPWAN 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32WL33KC, STM32WL33C8.
Please refer to the document for exact specifications by model.
