STM32U5G9VJ, STM32U5G7VJ 160MHz ULP Cortex-M33 MCU

STM32U5G9VJ Description

STM32U5Gxxx 2.5D and vector graphics, JPEG codec, LTDC, MIPI®DSI, 160 MHz ULP Cortex®-M33 MCU, 4 MB flash, 3 MB SRAM, crypto Datasheet - production d.

STM32U5G9VJ Features

* Includes ST state-of-the-art patented technology Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* - 40 °C to + 85°C temperature range
* LPBAM: autonomous peripherals with DMA, functional down to Stop 2 mode
* VBAT mode: supply for RTC, 32 x 32-b

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32U5G9VJ, STM32U5G7VJ. Please refer to the document for exact specifications by model.

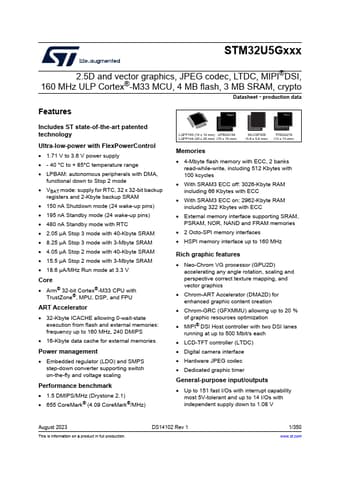

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32U5G9VJ, STM32U5G7VJ
Manufacturer
STMicroelectronics ↗
File Size
6.75 MB
Datasheet
STM32U5G7VJ-STMicroelectronics.pdf
Description
160MHz ULP Cortex-M33 MCU
Note
This datasheet PDF includes multiple part numbers: STM32U5G9VJ, STM32U5G7VJ.
Please refer to the document for exact specifications by model.
