STM32U083KC 32-bit MCU

STM32U083KC Description

STM32U083xC Datasheet Ultra-low-power Arm® Cortex®-M0+ 32-bit MCU, 256-Kbyte flash memory, 40Kbyte SRAM, USB, LCD, AES LQFP48 (7 x 7 mm) LQFP64 (10 x.
functional overview, pin assignment and definition, electrical characteristics, packaging and ordering information.

STM32U083KC Features

* Includes ST state-of-the-art patented technology. Ultra-low-power features (ultra-low-power devices)
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* VBAT mode: 130 nA (with RTC and 9 x 32-bit backup registers)
* Shutdown mode (6 wake-up pins):

📥 Download Datasheet

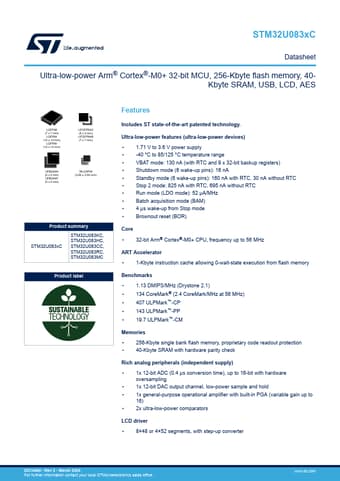

Preview of STM32U083KC PDF
datasheet Preview Page 2 datasheet Preview Page 3
