STM32L496AG 32-bit MCU+FPU

STM32L496AG Description

STM32L496xx Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100 DMIPS, up to 1 MB flash, 320 KB SRAM, USB OTG FS, audio, HASH, external SMPS Datashee.

STM32L496AG Features

* Includes ST state-of-the-art patented technology
* Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* 320 nA in VBAT mode: supply for RTC and 32 x 32-bit backup registers
* 25 nA Shutdown mode (5 wak

📥 Download Datasheet

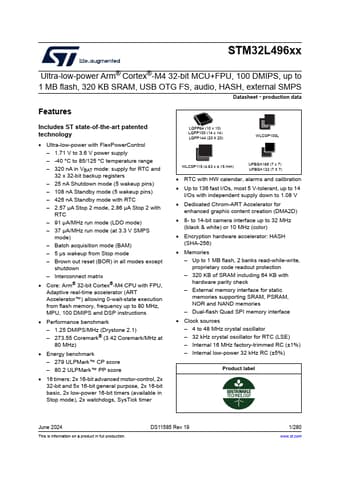

Preview of STM32L496AG PDF
datasheet Preview Page 2 datasheet Preview Page 3
