STM32L422CB - Ultra-low-power Arm Cortex-M4 32-bit MCU+FPU

STM32L422CB Description

STM32L422xx Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100DMIPS, 128KB flash, 40KB SRAM, analog, AES Datasheet - production data .

STM32L422CB Features

* Includes ST state-of-the-art patented technology
* Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* 300 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
* 16 nA Shutdown mode (4 wakeu

📥 Download Datasheet

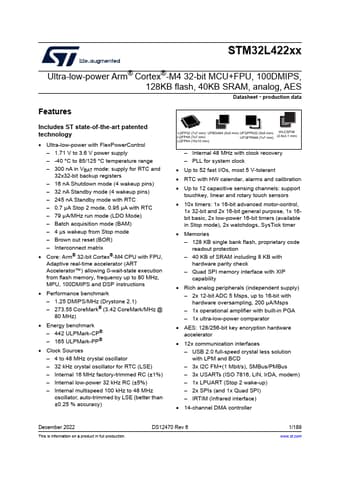

Preview of STM32L422CB PDF
datasheet Preview Page 2 datasheet Preview Page 3
