STM32H735AG 32-bit MCU

STM32H735AG Description

STM32H735xG Arm® Cortex®-M7 32-bit 550 MHz MCU, 1 MB flash, 564 KB RAM, Ethernet, USB, 3x FD-CAN, Graphics, 2x 16-bit ADCs, crypto/hash Datasheet - p.

STM32H735AG Features

* Includes ST state-of-the-art patented technology Core
* 32-bit Arm® Cortex®-M7 CPU with DP-FPU, L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache allowing 0-wait state execution from embedded flash memory and external memories, frequency up to 550 MHz, MPU, 1177 DMIPS/2.14 DMIPS/

📥 Download Datasheet

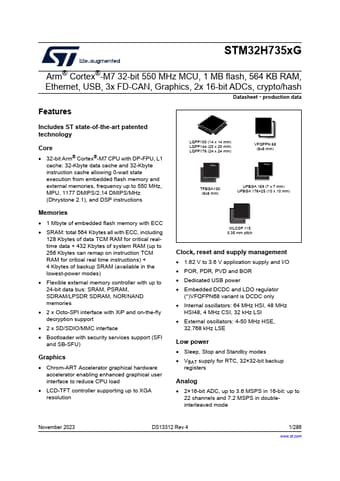

Preview of STM32H735AG PDF
datasheet Preview Page 2 datasheet Preview Page 3
