STM32F401RD, STM32F401CD - ARM Cortex-M4 32b MCU+FPU

Name: STM32F401RD
SKU: STM32F401RD-928721

STMicroelectronics

The STM32F401RD by STMicroelectronics is a ARM Cortex-M4 32b MCU+FPU. Below is the official datasheet preview.

Datasheet Details

Part number	STM32F401RD, STM32F401CD
Manufacturer	STMicroelectronics
File Size	1.78 MB
Description	ARM Cortex-M4 32b MCU+FPU
Datasheet	STM32F401CD-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32F401RD, STM32F401CD. Please refer to the document for exact specifications by model.

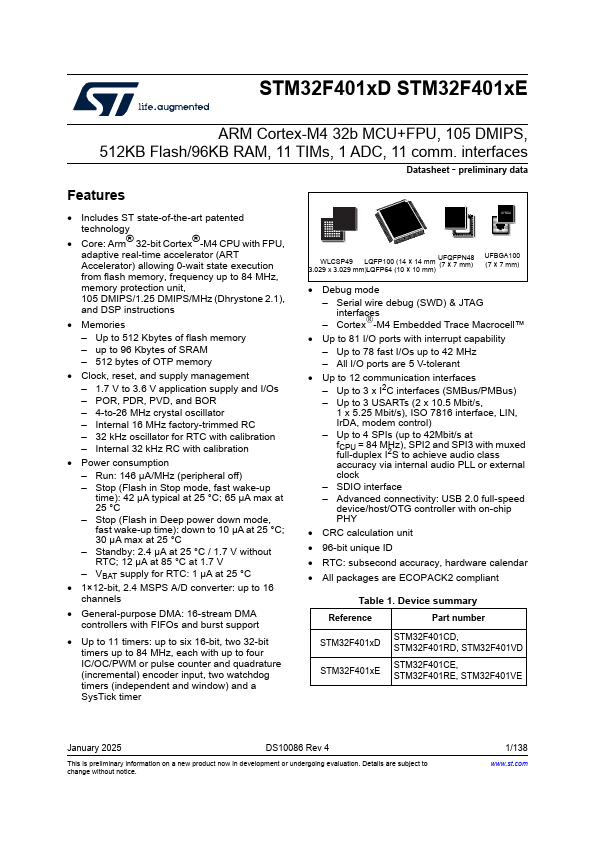

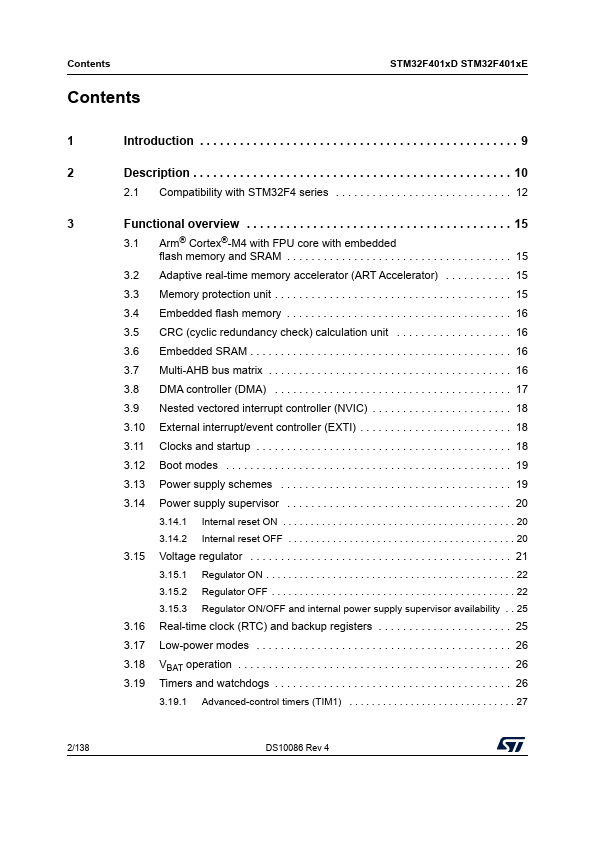

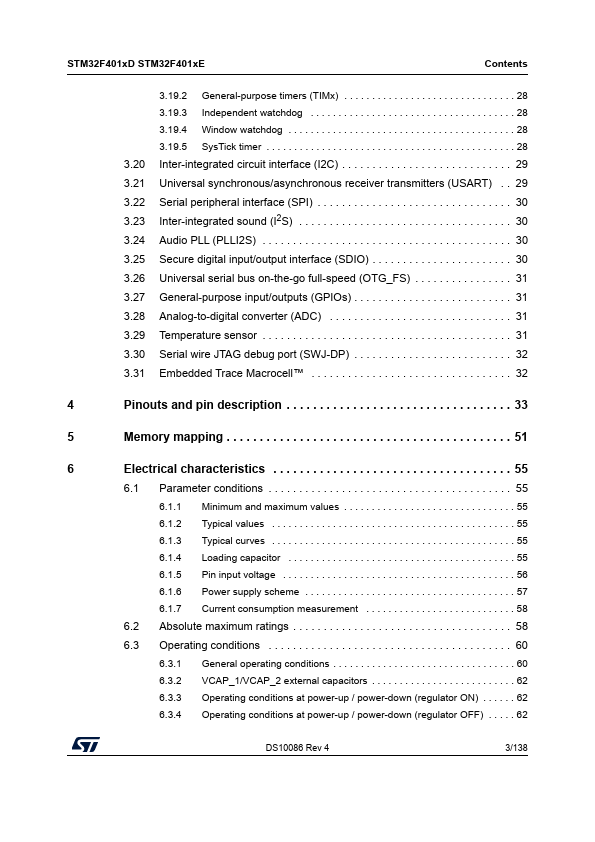

Additional preview pages of the STM32F401RD datasheet.

. . 15 3.1 Arm® Cortex®-M4 with FPU core with embedded flash memory and SRAM .

Includes ST state-of-the-art patented technology.
Core: Arm® 32-bit Cortex®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
Memories.
Up to 512 Kbytes of flash memory.
up to 96 Kbytes of SRAM.
512 bytes of OTP memory.
Clock, reset, and supply management.
