LSM6DSV - 6-axis IMU

STMicroelectronics

📥 Download Datasheet

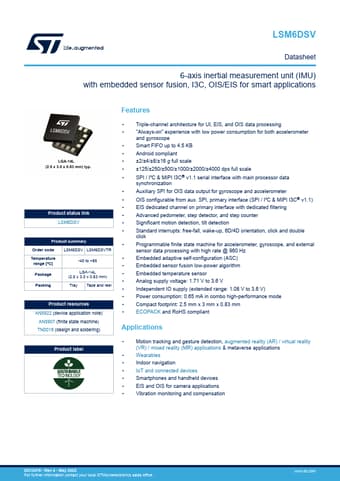

LSM6DSV Datasheet Preview — Preview of LSM6DSV PDF

Datasheet Details

Part number	LSM6DSV
Manufacturer	STMicroelectronics
File Size	4.64 MB
Description	6-axis IMU
Datasheet	LSM6DSV-STMicroelectronics.pdf

LSM6DSV Product details

Description

The LSM6DSV is a high-end, low-noise, low-power 6-axis small IMU, featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope, that offers the best IMU sensor with a triple-channel architecture for processing acceleration and angular rate data on three separate channels (user interface, OIS, and EIS) with dedicated configuration, processing, and filtering.

Features

Product status link LSM6DSV Product summary Order code LSM6DSV LSM6DSVTR Temperature range [°C] -40 to +85 Package LGA-14L (2.5 x 3.0 x 0.83 mm) Packing Tray Tape and reel Product resources AN5922 (device.
