LSM6DSV16B - 6-axis IMU

STMicroelectronics

📥 Download Datasheet

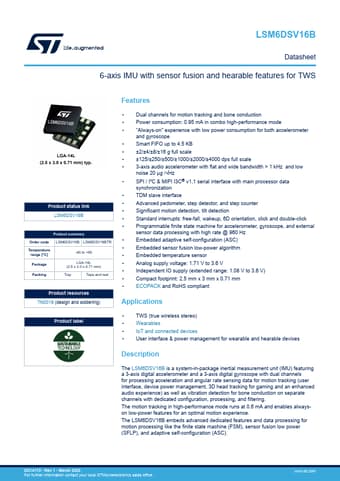

LSM6DSV16B Datasheet Preview — Preview of LSM6DSV16B PDF

Datasheet Details

Part number	LSM6DSV16B
Manufacturer	STMicroelectronics
File Size	3.58 MB
Description	6-axis IMU
Datasheet	LSM6DSV16B-STMicroelectronics.pdf

LSM6DSV16B Product details

Description

The LSM6DSV16B is a system-in-package inertial measurement unit (IMU) featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope with dual channels for processing acceleration and angular rate sensing data for motion tracking (user interface, device power management, 3D head tracking for gaming and an enhanced audio experience) as well as vibration detection for bone conduction on separate channels with dedicated configuration, processing, and filtering.

Features

for TWS Features Product status link LSM6DSV16B Product summary Order code LSM6DSV16B LSM6DSV16BTR Temperature range [°C] -40 to +85 Package LGA-14L (2.5 x 3.0 x 0.71 mm) Packing Tray Tape and reel Product resources TN0018 (design and soldering) Product label.
Dual channels for motion tracking and bone conduction.
Power consumption: 0.95 mA in combo high-performance mode.
“Always-on" experience with low power consumption for both accelerometer and gyrosco.
