LSM6DSV16BX - 6-axis IMU

STMicroelectronics

📥 Download Datasheet

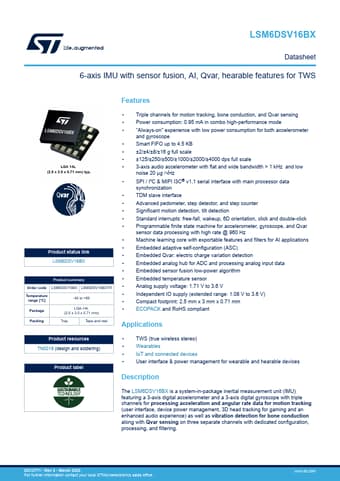

LSM6DSV16BX Datasheet Preview — Preview of LSM6DSV16BX PDF

Datasheet Details

Part number	LSM6DSV16BX
Manufacturer	STMicroelectronics
File Size	3.81 MB
Description	6-axis IMU
Datasheet	LSM6DSV16BX-STMicroelectronics.pdf

LSM6DSV16BX Product details

Description

The LSM6DSV16BX is a system-in-package inertial measurement unit (IMU) featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope with triple channels for processing acceleration and angular rate data for motion tracking (user interface, device power management, 3D head tracking for gaming and an enhanced audio experience) as well as vibration detection for bone conduction along with Qvar sensing on three separate channels with dedicated configuration, processing, and filtering.

Features

for TWS Features Product status link LSM6DSV16BX Product summary Order code LSM6DSV16BX LSM6DSV16BXTR Temperature range [°C] -40 to +85 Package LGA-14L (2.5 x 3.0 x 0.71 mm) Packing Tray Tape and reel.
Triple channels for motion tracking, bone conduction, and Qvar sensing.
Power consumption: 0.95 mA in combo high-performance mode.
“Always-on" experience with low power consumption for both accelerometer and gyroscope.
Smart FIFO up to 4.5 KB.
