LSM6DSV16X - 6-axis IMU

STMicroelectronics

📥 Download Datasheet

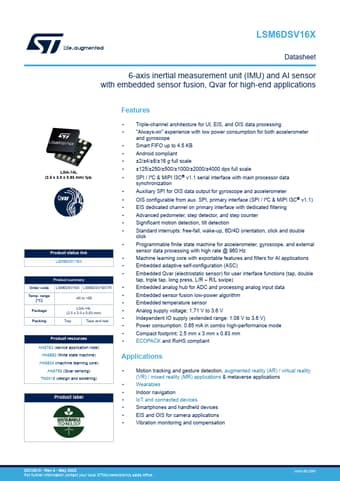

LSM6DSV16X Datasheet Preview — Preview of LSM6DSV16X PDF

Datasheet Details

Part number	LSM6DSV16X
Manufacturer	STMicroelectronics
File Size	4.88 MB
Description	6-axis IMU
Datasheet	LSM6DSV16X-STMicroelectronics.pdf

LSM6DSV16X Product details

Description

The LSM6DSV16X is a high-performance, low-power 6-axis small IMU, featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope, that offers the best IMU sensor with a triple-channel architecture for processing acceleration and angular rate data on three separate channels (user interface, OIS, and EIS) with dedicated configuration, processing, and filtering.

Features

LSM6DSV16X LGA-14L (2.5 x 3.0 x 0.83 mm) typ. Product status link LSM6DSV16X Product summary Order code LSM6DSV16X LSM6DSV16XTR Temp. range [°C] -40 to +85 Package LGA-14L (2.5 x 3.0 x 0.83 mm) Packing Tray Tape and reel Product resources AN5763 (device.
