STP2301 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

The STP2301 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

📥 Download Datasheet

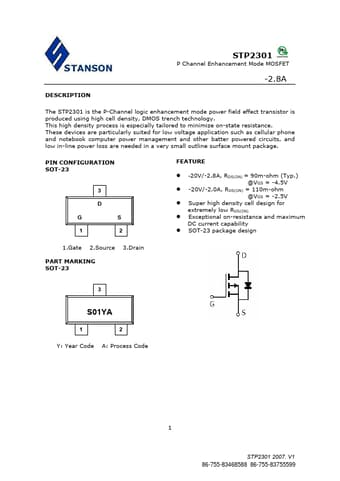

Datasheet preview – STP2301

Datasheet Details

Part number STP2301
Manufacturer STANSON
File Size 370.56 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP2301 Datasheet
Additional preview pages of the STP2301 datasheet.

📁 Similar Datasheet

  • STP2301 - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP2301 - P-Channel MOSFET (VBsemi)
  • STP2301S - Single P-Channel MOSFET (Semtron)
  • STP2305 - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP2305A - -20V P-Channel Enhancement Mode MOSFET (Semtron)
  • STP23N80K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM50N - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM50N - N-Channel MOSFET (INCHANGE)
  • STP23NM60N - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM60ND - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by STANSON
  • STP2327 - P-Channel Enhancement Mode MOSFET
  • STP4189D - P-Channel Enhancement Mode MOSFET
  • STP4403 - P-Channel Enhancement Mode MOSFET
  • STP4407 - P-Channel Enhancement Mode MOSFET
  • STP4441 - P-Channel Enhancement Mode MOSFET
  • STP4803 - Dual P-Channel Enhancement Mode MOSFET
  • STP4931 - Dual P-Channel Enhancement Mode MOSFET
  • STP4953 - Dual P-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text
STP2301 P Channel Enhancement Mode MOSFET -2.8A DESCRIPTION The STP2301 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other batter powered circuits, and low in-line power loss are needed in a very small outline surface mount package. PIN CONFIGURATION SOT-23 3 D G S 1 2 FEATURE -20V/-2.8A, RDS(ON) = 90m-ohm (Typ.) @VGS = -4.5V -20V/-2.0A, RDS(ON) = 110m-ohm @VGS = -2.
