STP4403 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

STP4403 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

📥 Download Datasheet

Datasheet preview – STP4403

Datasheet Details

Part number STP4403
Manufacturer STANSON
File Size 239.36 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP4403 Datasheet
Additional preview pages of the STP4403 datasheet.

📁 Similar Datasheet

  • STP4407 - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP4407A - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP440S - N-Channel MOSFET (SamHop Microelectronics)
  • STP4410 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STP4435 - -30V P-Channel Enhancement Mode MOSFET (Semtron)
  • STP4435 - MOSFET (Stanson Technology)
  • STP4435M - Single P-Channel MOSFET (Semtron)
  • STP400N4F6 - N-channel Power MOSFET (STMicroelectronics)
  • STP40N03L-20 - N-Channel MOSFET (ST Microelectronics)
  • STP40N06 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
Other Datasheets by STANSON
  • STP4407 - P-Channel Enhancement Mode MOSFET
  • STP4441 - P-Channel Enhancement Mode MOSFET
  • STP4189D - P-Channel Enhancement Mode MOSFET
  • STP4803 - Dual P-Channel Enhancement Mode MOSFET
  • STP4931 - Dual P-Channel Enhancement Mode MOSFET
  • STP4953 - Dual P-Channel Enhancement Mode MOSFET
  • STP2301 - P-Channel Enhancement Mode MOSFET
  • STP2327 - P-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text

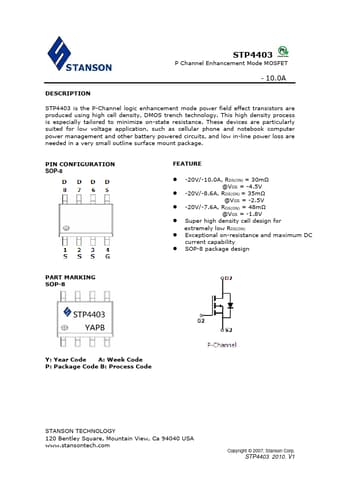

STP4403 P Channel Enhancement Mode MOSFET - 10.0A DESCRIPTION STP4403 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application, such as cellular phone and notebook computer power management and other battery powered circuits, and low in-line power loss are needed in a very small outline surface mount package. PIN CONFIGURATION SOP-8 FEATURE -20V/-10.0A, RDS(ON) = 30mΩ @VGS = -4.5V -20V/-8.6A, RDS(ON) = 35mΩ @VGS = -2.5V -20V/-7.6A, RDS(ON) = 48mΩ @VGS = -1.
