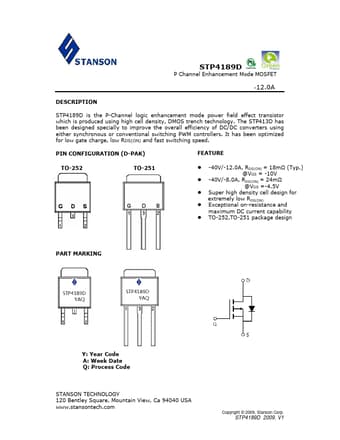

STP4189D
P Channel Enhancement Mode MOSFET
-12.0A
DESCRIPTION
STP4189D is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. The STP413D has been designed specially to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed.
PIN CONFIGURATION (D-PAK)
FEATURE
TO-252
TO-251
-40V/-12.0A, RDS(ON) = 18mΩ (Typ.) @VGS = -10V
-40V/-8.0A, RDS(ON) = 24mΩ @VGS =-4.
