STP2327 - P-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

STP2327 is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

📥 Download Datasheet

Datasheet preview – STP2327

Datasheet Details

Part number STP2327
Manufacturer STANSON
File Size 517.20 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP2327 Datasheet
Additional preview pages of the STP2327 datasheet.

📁 Similar Datasheet

  • STP2301 - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP2301 - P-Channel MOSFET (VBsemi)
  • STP2301S - Single P-Channel MOSFET (Semtron)
  • STP2305 - P-Channel Enhancement Mode MOSFET (Semtron)
  • STP2305A - -20V P-Channel Enhancement Mode MOSFET (Semtron)
  • STP23N80K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM50N - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM50N - N-Channel MOSFET (INCHANGE)
  • STP23NM60N - N-channel Power MOSFET (STMicroelectronics)
  • STP23NM60ND - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by STANSON
  • STP2301 - P-Channel Enhancement Mode MOSFET
  • STP4189D - P-Channel Enhancement Mode MOSFET
  • STP4403 - P-Channel Enhancement Mode MOSFET
  • STP4407 - P-Channel Enhancement Mode MOSFET
  • STP4441 - P-Channel Enhancement Mode MOSFET
  • STP4803 - Dual P-Channel Enhancement Mode MOSFET
  • STP4931 - Dual P-Channel Enhancement Mode MOSFET
  • STP4953 - Dual P-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text

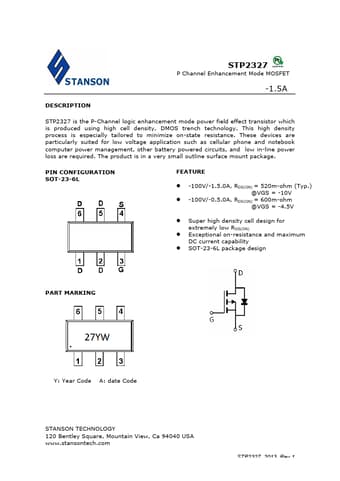

STP2327 P Channel Enhancement Mode MOSFET -1.5A DESCRIPTION STP2327 is the P-Channel logic enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management, other battery powered circuits, and low in-line power loss are required. The product is in a very small outline surface mount package. PIN CONFIGURATION SOT-23-6L FEATURE l -100V/-1.5.0A, RDS(ON) = 520m-ohm (Typ.) @VGS = -10V l -100V/-0.5.0A, RDS(ON) = 600m-ohm @VGS = -4.
