TSV912, TSV911 8MHz operational amplifiers

TSV912 Description

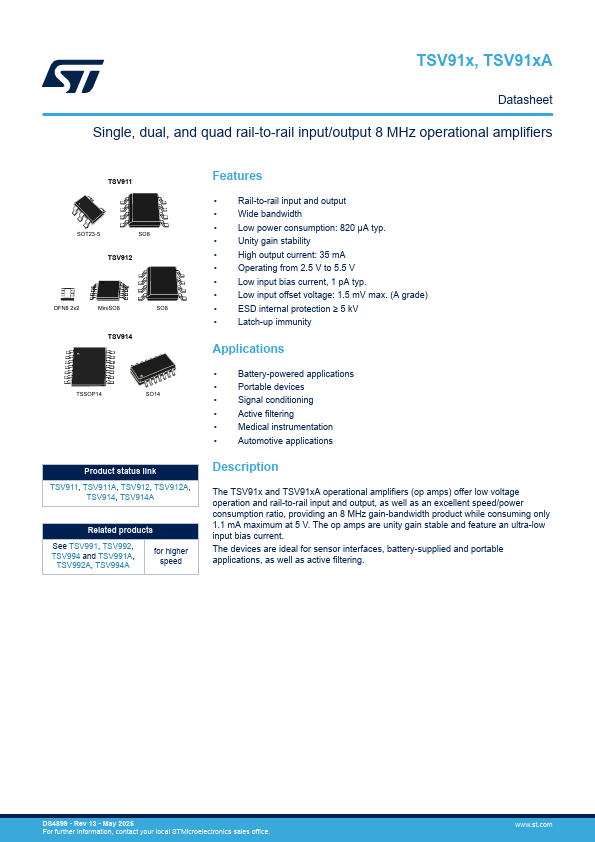

TSV91x, TSV91xA Datasheet Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers TSV911 SOT23-5 SO8 TSV912 DFN8 2x2 MiniS.
The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/p.

TSV912 Features

* Rail-to-rail input and output
* Wide bandwidth
* Low power consumption: 820 µA typ.
* Unity gain stability
* High output current: 35 mA
* Operating from 2.5 V to 5.5 V
* Low input bias current, 1 pA typ.
* Low input offset voltage: 1.

TSV912 Applications

* Battery-powered applications
* Portable devices
* Signal conditioning
* Active filtering
* Medical instrumentation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSV912, TSV911. Please refer to the document for exact specifications by model.

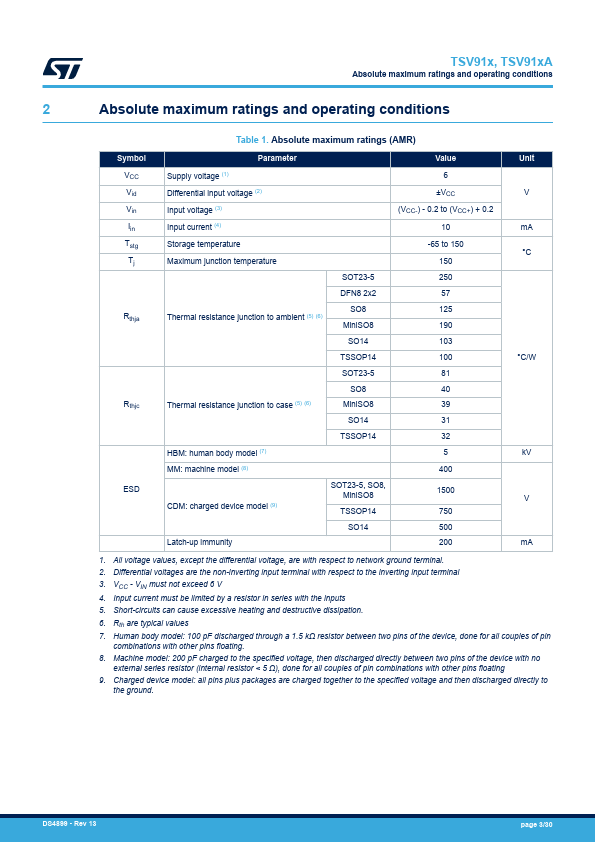

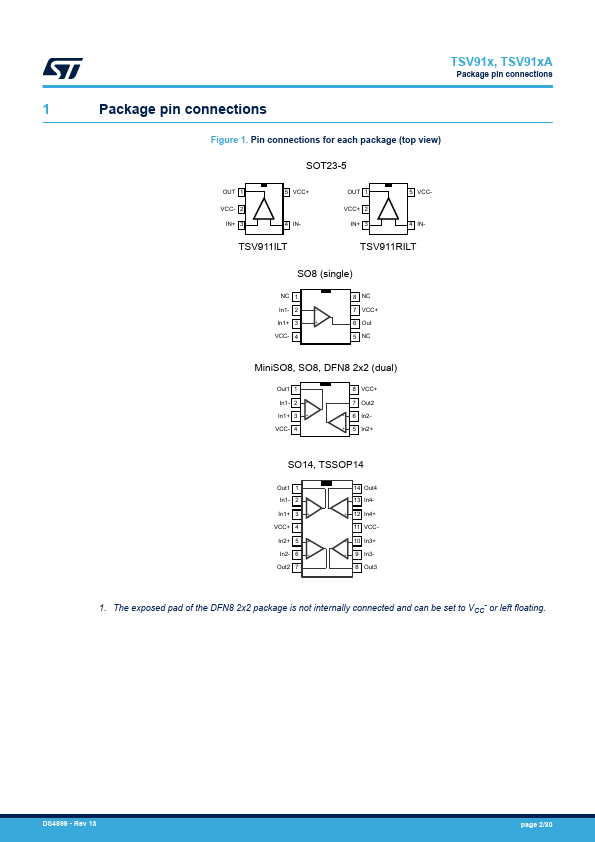

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSV912, TSV911
Manufacturer
STMicroelectronics ↗
File Size
960.65 KB
Datasheet
TSV911_STMicroelectronics.pdf
Description
8MHz operational amplifiers
Note
This datasheet PDF includes multiple part numbers: TSV912, TSV911.
Please refer to the document for exact specifications by model.
