TSV911 8-MHz Operational Amplifiers

TSV911 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TSV911, TSV912, TSV914 SBOS878D * JULY 2017 * R.
The TSV91x family, which includes single-, dual-, and quad-channel operational amplifiers (op amps), is specifically designed for general-purpose appl.

TSV911 Features

* 1 Rail-to-rail input and output
* Low noise: 18 nV/√Hz at 1 kHz
* Low power consumption: 550 µA (typical)
* High-gain bandwidth: 8 MHz
* Operating supply voltage from 2.5 V to 5.5 V
* Low input bias current: 1 pA (typical)
* Low input offset v

TSV911 Applications

* Battery-powered applications
* Motor control
* Power modules
* HVAC: heating, ventilating, and air conditioning
* Washing machines
* Refrigerators
* Medical instrumentation
* Active filters
* Sensor signal conditioning

📥 Download Datasheet

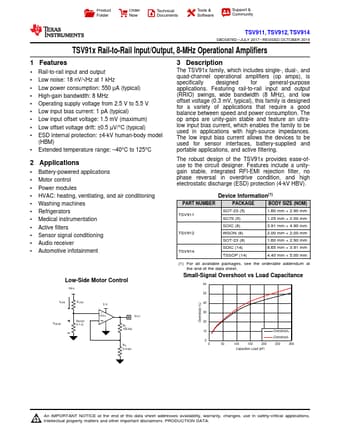

Preview of TSV911 PDF
datasheet Preview Page 2 datasheet Preview Page 3
