TSV912AH, TSV912H High temperature rail-to-rail input/output 8 MHz operational amplifiers

TSV912AH Description

www.DataSheet4U.com TSV912H, TSV912AH High temperature rail-to-rail input/output 8 MHz operational amplifiers .
The TSV912H and TSV912AH operational amplifiers offer low voltage operation and rail-torail input and output.

TSV912AH Features

* Rail-to-rail input and output Wide bandwidth Low power consumption: 820 µA typ Unity gain stability High output current: 35 mA Operating range from 2.5 to 5.5 V Low input bias current, 1 pA typ ESD internal protection ≥ 5 kV Latch-up immunity Ou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSV912AH, TSV912H. Please refer to the document for exact specifications by model.

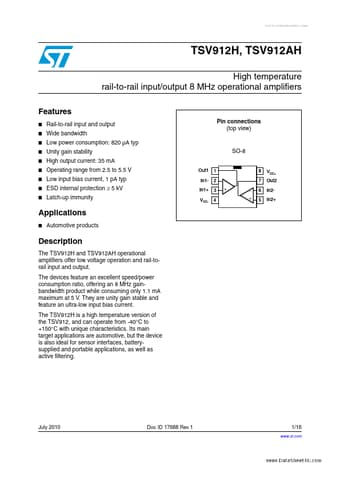

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSV912AH, TSV912H
Manufacturer
STMicroelectronics ↗
File Size
828.38 KB
Datasheet
TSV912H_STMicroelectronics.pdf
Description
High temperature rail-to-rail input/output 8 MHz operational amplifiers
Note
This datasheet PDF includes multiple part numbers: TSV912AH, TSV912H.
Please refer to the document for exact specifications by model.
